Basic Systems (Single-Axis)


Transportation Test Range

Large displacement is ideal for large freight transportation testing

C-series is optimized for transportation tests.

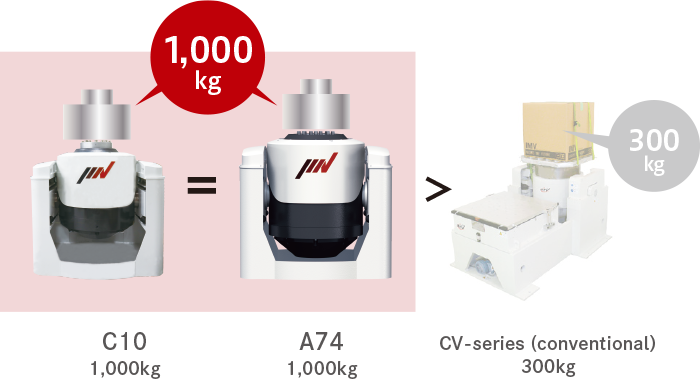

Maximum Load 1,000 kg

C-series has an increased maximum load compared to the conventional system. It enables vibration testing for heavier specimens.

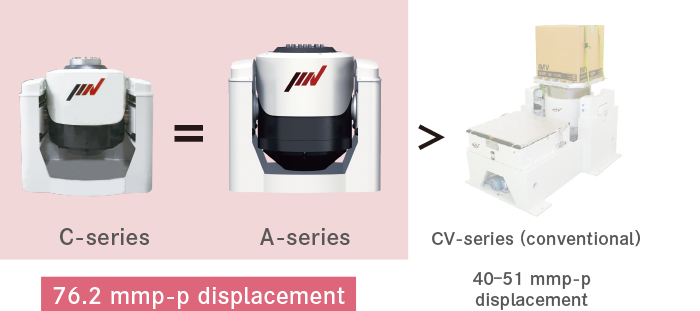

Standard 76.2 mmp-p Displacement

C-series has a displacement of 76.2 mmp-p (3 inch stroke), which offers a good balance of velocity, acceleration, and displacement within its specifications.

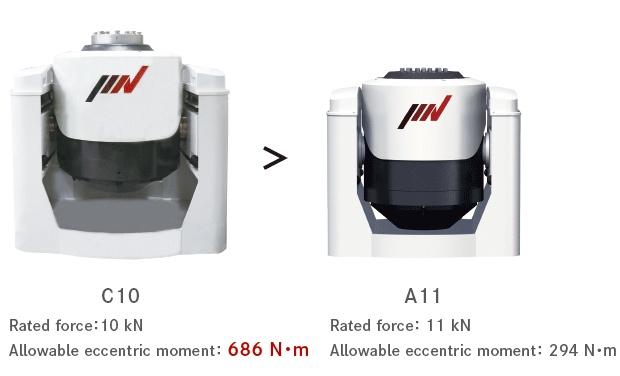

High Rigidity

C-series is designed for specimens which center of gravity is high or deviated from the center.

High rigidity

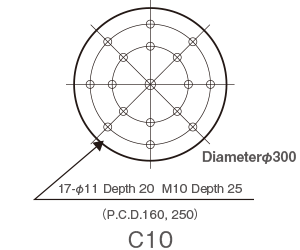

Table Insert Pattern

Unit: mm
