Basic Systems (Single-Axis)
J-series
(Large Displacement Range)
J-series accommodates high-velocity and large-displacement testing
Long-duration shock tests require high velocity and large displacement.
J-series is a high-functionality system that offers usability and durability along with functions that accommodate high-velocity and large-displacement testing.
Features
Expanded maximum test range
-
Maximum velocity of Sine force
2.4m/s
-
Maximum velocity of Shock force
3.5m/s
-
Maximum displacement
100mmp-p
-
Maximum Load
1000kg
Compliant with large displacement testing standards for international transportation tests (such as ASTM and ISTA).
Expanded maximum test range
-
Maximum velocity of Sine force
94in/s
-
Maximum velocity of Shock force
181in/s
-
Maximum displacement
4.0inp-p
-
Maximum Load
2200lbs
Compliant with large displacement testing standards for international transportation tests (such as ASTM and ISTA).

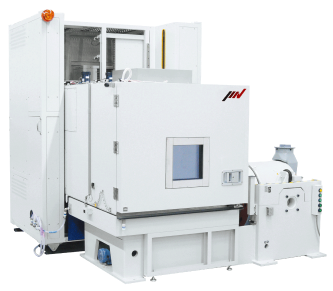

All models can be directly coupled to a climatic test chamber

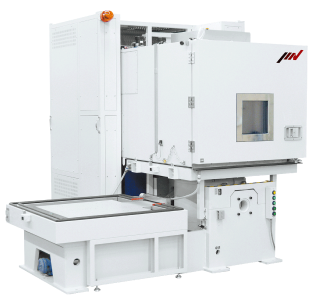

Combining a rail mechanism for horizontal movement with a lift mechanism for vertical movement, this system enables combined testing in both vertical and horizontal directions.
vertical movement
horizontal movement
Typical Specimens and Applications
-
- Automotive
Ventilation and Breather Components, Batteries, Exhaust Mufflers Catalytic Converters, Seatbelts, Fuel Cells, Braking Systems, e-Axles -
- Aerospace
Space Environment Utilization Equipment, Drones, In-Flight Entertainment (IFE) Monitors -
- Precision Equipment
-
- Electrical & Electronic
-
- ICT
Large-Scale Antennas (Seismic-Resistant) -
- Railway & Transportation
-
- Power Equipment
Table Insert Pattern
Unit: mm
Unit: inch
